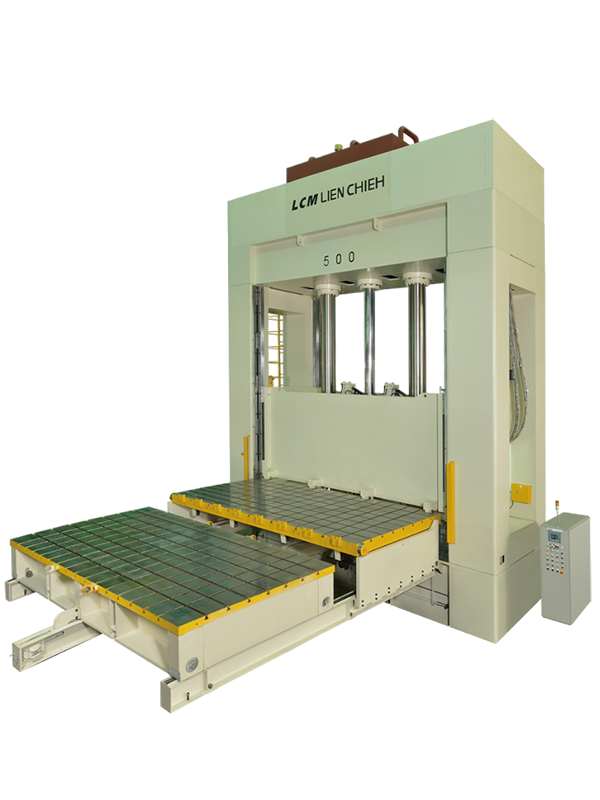

Die Spotting Press
Tonnage: 500 ton
Bolster Area: 5,000 x 2,500 mm
Bolster Area: 5,000 x 2,500 mm
Features
- Automatic and Manual Locking Devices
- Very accurate Micro-Inching System
- Inching Positioning Display accurate to 0.01mm
- Optional 180° Slide Tilt System
- Suitable for Mold and Die Manufacturing
Description
Lien Chieh offers expert die spotting presses that can be custom built to fit the needs of high precision die spotting. Our die spotting presses are very robust and reliable and can be used for efficient and quick die/mold tryout, to ensure high accuracy and excellent reliability. These presses can be equipped with a 180° slide tilt system, that allows for easy mold or die removal.
The demand for highly accurate and efficient die spotting presses has been steadily increasing due to the growing importance of small batch production runs and high precision mold production, especially in the automotive industry.
The demand for highly accurate and efficient die spotting presses has been steadily increasing due to the growing importance of small batch production runs and high precision mold production, especially in the automotive industry.

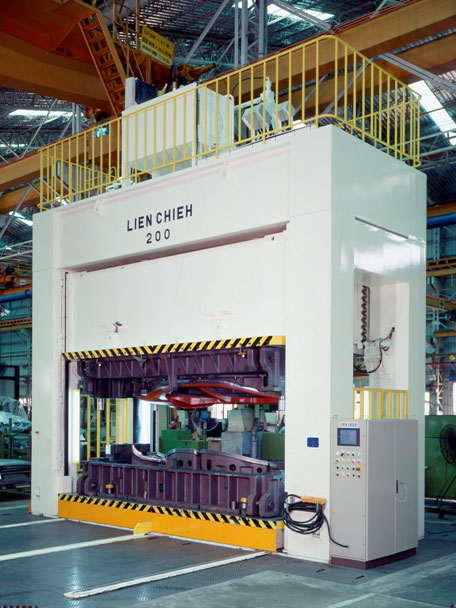

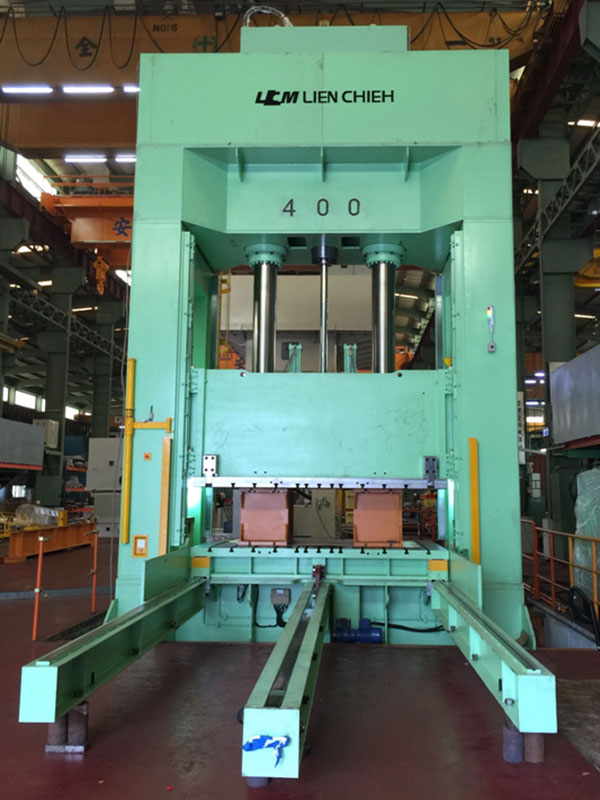

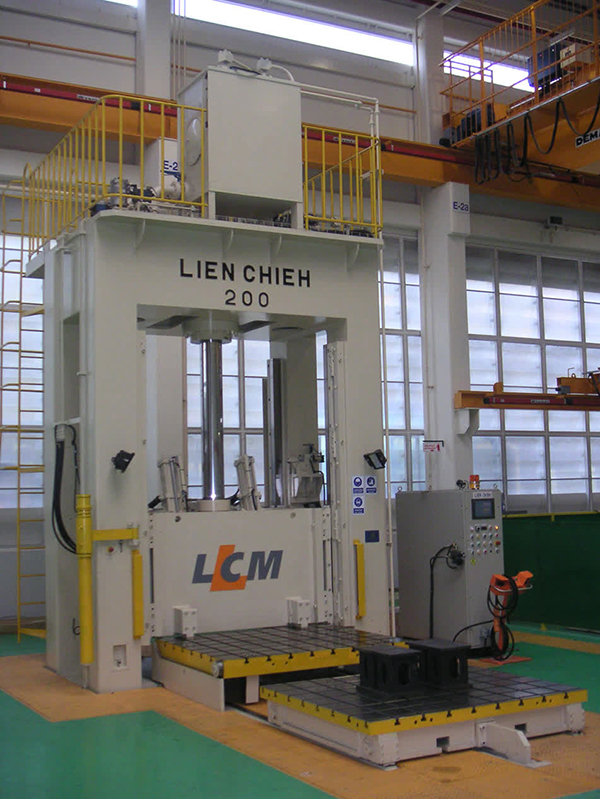

Reference
Specifications
| Model | Capacity ton | Bolster Area mm | Descending Speed mm/sec | Ascending Speed mm/sec | Micro Inching mm/push |
|---|---|---|---|---|---|
| LDS-50-A | 50 | 1,500 x 1,200 | 60 | 50 | 0.05~1 |
| LDS-50-B | 50 | 2,000 x 1,500 | 60 | 50 | 0.05~1 |
| LDS-50-C | 50 | 2,500 x 1,500 | 60 | 50 | 0.05~1 |
| LDS-100-A | 100 | 3,000 x 2,000 | 60 | 50 | 0.05~1 |
| LDS-100-B | 100 | 4,000 x 2,500 | 60 | 50 | 0.05~1 |
| LDS-200 | 200 | 4,500 x 2,500 | 60 | 50 | 0.05~1 |
| LDS-500 | 500 | 5,000 x 2,500 | 60 | 50 | 0.05~1 |
| LDS- | 600 or > | Please Specify | Please Specify | Please Specify | 0.05~1 |
